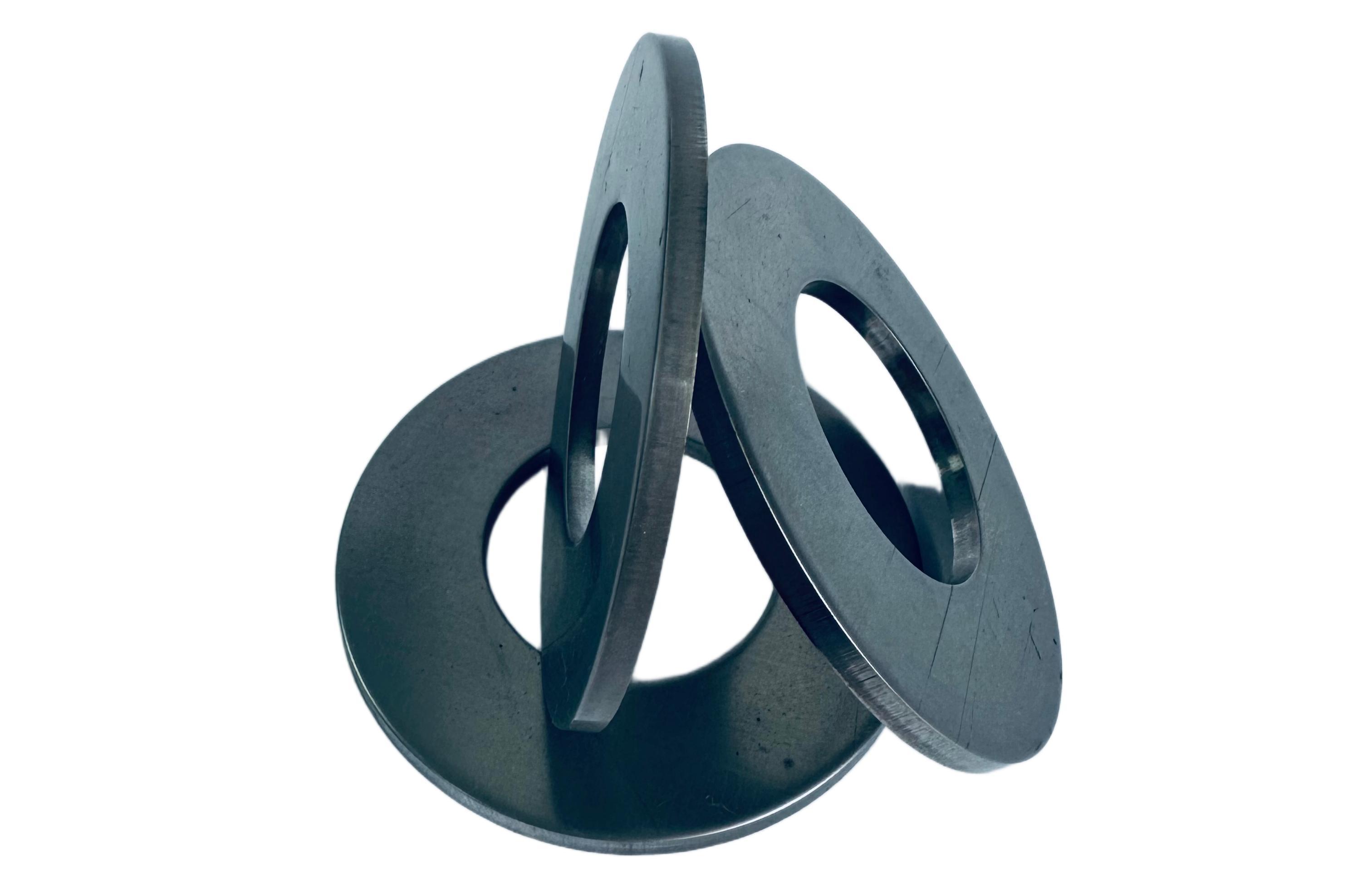

Sunzo Aviation-grade Disc Springs: High-end Custom Elastic Solutions for Reliable Critical Mission System Operation

Sunzo Aviation-grade Disc Springs: High-end Custom Elastic Solutions for Reliable Critical Mission System Operation

The aerospace industry, as a core sector within the high-end manufacturing field, imposes nearly stringent requirements on the reliability, stability, and environmental adaptability of components. Disc springs, serving as critical elastic components, are widely used in key applications such as landing gear, engines, avionics systems, and satellite structures; their performance directly determines the operational safety and service life of the equipment. Jiangsu Sunzo (SUNZO), a domestic enterprise specializing in customized high-end elastic component solutions, has dedicated over a decade to the research, development, and manufacturing of disc springs. Addressing the unique requirements of the aerospace industry, SUNZO offers end-to-end customized disc spring solutions, empowering aerospace clients to overcome challenges posed by extreme operating conditions and ensure the stable and reliable operation of their core systems.

Deeply addressing industry demands to build a customized R&D system

• Different application scenarios in the aerospace industry impose significantly varying performance requirements on disc springs: landing gear systems demand springs with high load-bearing capacity and excellent impact absorption performance; engine components require materials capable of withstanding temperatures exceeding 700°C and prolonged creep; while satellite mechanisms require products to maintain elastic stability under extreme low-temperature conditions of-270°C, while simultaneously meeting lightweight design requirements. Leveraging its industry-leading R&D center and 12 core patented technologies, Jiangsu Sunzo has established a comprehensive, end-to-end customized R&D system encompassing "demand research – solution design – simulation verification – prototype testing – mass production." Tailored to each customer's specific operating condition parameters, the company provides full-spectrum customized services ranging from material selection and structural design to surface treatment, ensuring that its products perfectly align with the customer's actual operational requirements.

High-end material systems meet the demands of extreme operating conditions

• Material properties form the core foundation for the reliability of disc springs. To meet the stringent environmental requirements of the aerospace industry, Jiangsu Sunzo has established a comprehensive high-end material selection system, enabling the selection of various high-temperature alloy materials—such as Inconel 718, Inconel X-750, and GH4169—based on customer specifications. The Inconel 718 material (containing 52% nickel, 19% chromium, and 18% iron) is suitable for wide-temperature operating ranges from-270°C to 650°C, boasts a tensile strength exceeding 1300 MPa, and offers a fatigue life of up to 10⁸ cycles at 70% of its yield strength, making it ideal for long-term service in the vast majority of aerospace applications; the Inconel X-750 material (containing 73% nickel, 15% chromium, and 2.5% titanium) exhibits superior high-temperature creep resistance and can operate at temperatures up to 700°C, making it particularly suitable for high-temperature applications such as hot-end engine components. All raw materials are sourced from leading industry suppliers, and complete material traceability reports are provided to comply with the quality traceability requirements of the aerospace sector.

Innovative structural design enables precise performance matching

• Jiangsu Sunzo's independently developed disc spring variable stiffness design technology enables precise stiffness adjustment across the range of 5–50 N/mm through unique stacking configurations, meeting diverse performance requirements across various application scenarios. For landing gear shock absorption systems designed for high-load applications, a parallel stacking structure is employed to significantly enhance load-bearing capacity; for engine thrust-back devices requiring large deformation ranges, a series stacking structure is utilized to achieve a longer operating stroke; for avionics equipment installation systems, a composite nesting configuration is adopted to provide adaptive damping performance, effectively isolating vibration disturbances at different frequencies. Compared to traditional helical springs, the aerospace-grade disc springs designed by Sunzo feature an optimized conical geometry, reducing axial space occupancy by 40% and weight by 35%, thereby aligning with the core lightweight design requirements of aerospace equipment and helping customers achieve an optimal balance between equipment performance and weight.

Strict quality control – Complies with aerospace standards

• Jiangsu Sunzo has established a comprehensive full-process quality control system compliant with aerospace industry requirements, having obtained both the AS9100D Aerospace Quality Management System certification and the Nadcap Special Process Certification; every production stage strictly adheres to aviation-grade quality standards. Each delivered disc spring undergoes multiple rigorous tests: ultrasonic flaw detection conducted in accordance with the ASTM E164 standard ensures the absence of microscopic defects within the material; helium mass spectrometry leak testing confirms a leakage rate below 1*10⁻⁹ atm·cc/s, meeting the requirements for sealing applications; temperature cycling tests performed per the MIL-STD-810H standard verify the product's performance stability under extreme temperature variations; in addition, more than ten other testing items—including salt spray corrosion testing, fatigue life testing, and load characteristic testing—are conducted to ensure that all delivered products meet the specified design requirements. The company provides a complete product quality documentation package, encompassing raw material reports, production process records, test reports, traceability labels, and other materials, to fulfill customers' quality audit requirements.

Rich application expertise drives enhanced customer value

• With its outstanding product performance and comprehensive customization services, Jiangsu Sunzo's aerospace-grade disc springs have been widely adopted across various aerospace applications: in helicopter rotor damping systems, these springs effectively reduce vibration amplitude by 30% and extend the rotor system's service life by 40%; in satellite solar panel deployment mechanisms, they maintain stable elasticity even after enduring thousands of space temperature cycles, ensuring reliable deployment operations; in aero-engine fuel control valves, they consistently maintain precise preload under prolonged exposure to high-temperature and high-pressure conditions, ensuring accurate fuel system regulation. The company also provides customers with end-to-end lifecycle technical support – ranging from design-phase consultation to performance monitoring during operation – helping clients enhance product reliability and reduce maintenance costs.

As a domestic supplier specializing in aerospace elastic components, Jiangsu Sunzo steadfastly adheres to a development philosophy centered on "technology-driven approach, quality first, and customized services." The company continuously invests in R&D innovation, consistently enhances its product performance and service capabilities, and is committed to providing global aerospace customers with reliable, tailored, and cost-effective high-end disc spring customization solutions, thereby supporting the high-quality development of the aerospace industry. Moving forward, Jiangsu Sunzo will continue to stay abreast of evolving aerospace technology trends, increase its R&D investment in new materials, manufacturing processes, and structural designs, and provide robust support for the upgrading and iterative development of aerospace equipment through its core components.
