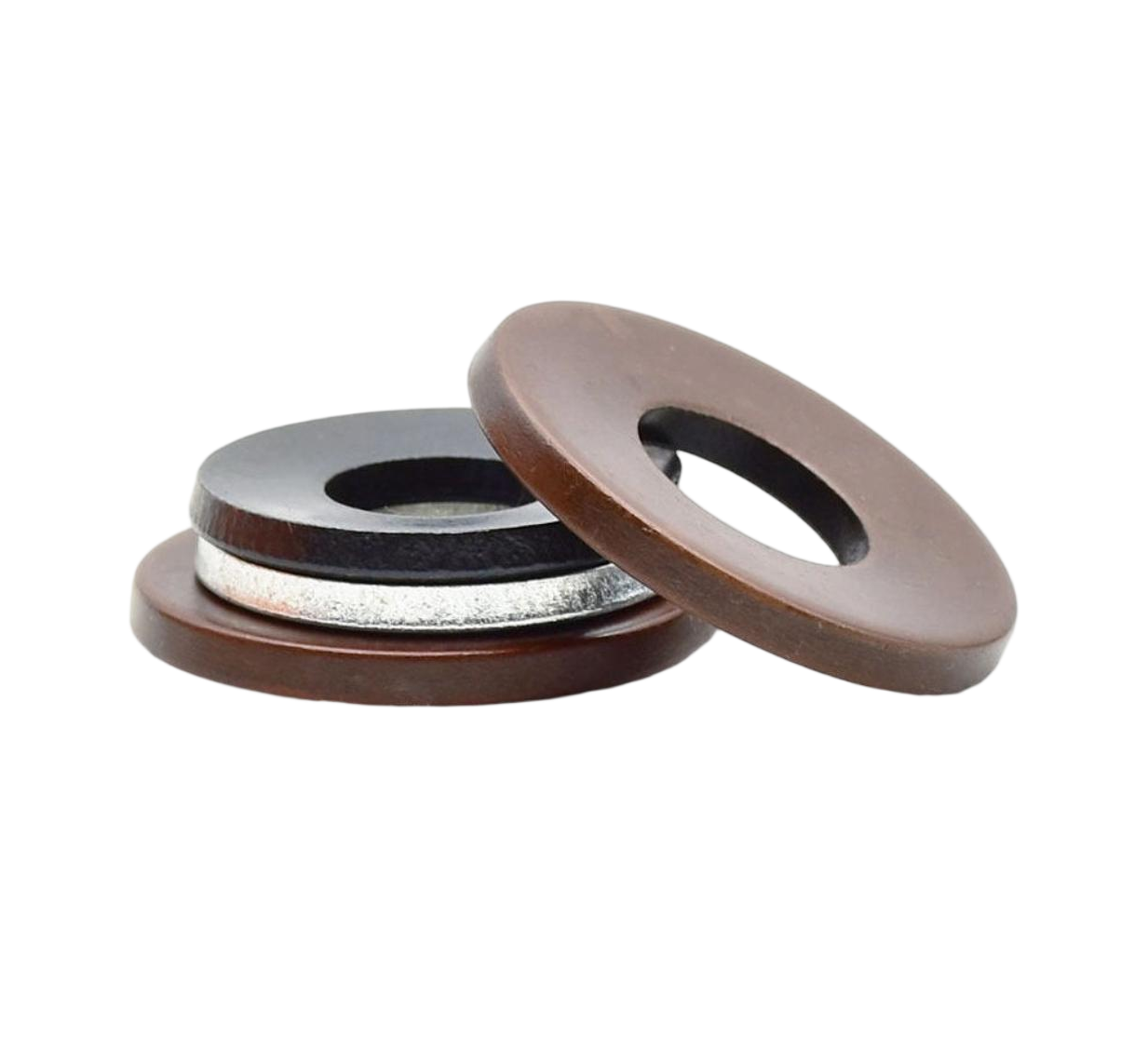

DIN6796 Disc Spring Washer Customization Solution: Jiangsu Sunzo strengthens industrial safety fastening defenses

As the global industrial landscape continues to evolve toward higher precision and greater reliability, bolted connections – the most widely used fastening method in mechanical systems – play a critical role in ensuring equipment operational safety; even a mere 0.1 mm reduction in preload can, under the prolonged influence of alternating loads, thermal expansion and contraction, or vibration and impact, lead to equipment failure, production downtime, or even safety incidents. The Belleville washer, developed in the late 19th century, was specifically designed to address this industry challenge. The DIN6796 disc spring washer, which complies with the German DIN6796 standard, has evolved over a century of technological advancement to become a globally recognized, highly reliable anti-loosening fastening component. As an enterprise deeply committed to the research, development, and manufacturing of elastic components in China, Jiangsu Sunzo Spring Elastic Technology Co., Ltd. leverages its range of standardized products as a foundation and focuses on high-end customized solutions as its core approach, offering DIN6796 disc spring washer products tailored to diverse industrial application scenarios, thereby helping businesses across all industries enhance the reliability of their fastening systems.

DIN6796 is a technical specification for conical spring washers issued by the German Standards Association (DIN), which establishes clear requirements regarding product geometric dimensions, mechanical properties, material selection, and testing standards – making it suitable for all bolt connection applications ranging from M2 to M125. Compared to traditional flat washers or conventional spring washers, the conical design of DIN6796 disc washers provides greater axial elastic recovery force, enabling active compensation for preload loss in bolted connections resulting from wear, creep, or thermal expansion/contraction; thus, they are particularly well-suited for industrial applications subjected to long-term alternating loads or temperature fluctuations.

As industrial applications have become increasingly diversified, conventional DIN6796 standard washers can no longer adequately meet the specialized requirements of niche markets: marine engineering applications demand superior corrosion resistance; high-temperature metallurgical environments require materials capable of withstanding temperatures above 400°C; and precision electronic equipment necessitates smaller dimensions and more precise load control. This evolving industry demand is driving the transition of disc spring washers from "standardized supply" to "customized solutions," and Jiangsu Sunzo is a pioneer in this trend.

Jiangsu Sunzo Spring Elastic Technology Co., Ltd. has been specializing in the research, development, and manufacturing of elastic components for many years. The company holds dual ISO 9001:2015 and IATF 16949 certifications and offers comprehensive custom manufacturing services for DIN6796 disc gaskets throughout the entire production lifecycle. Tailored to meet customers' specific operational requirements, the company provides end-to-end support spanning material selection, structural design, surface treatment, and performance testing.

• Customized materials: Suitable for a wide range of base materials—including 65Mn spring steel, 50CrVA alloy spring steel, 304/316L stainless steel, and superalloys—meeting temperature requirements spanning from-60°C to 450°C, and compatible with extreme operating conditions such as high corrosion, high loads, or severe vibration;
• Customizable parameters: We offer products across the entire size range from 6 mm to 250 mm outer diameter; load deviation is controlled within ±10%; hardness can be selected from two ranges – HRC42–48 or HRC52–56 – to meet various preload rating requirements;
• Custom surface treatment options: We offer a range of surface treatment solutions including blackening, phosphating, galvanizing, Dakro coating, and zinc-nickel alloying; these solutions support neutral salt spray testing for up to 720 hours, making them ideal for marine engineering applications and long-term outdoor service environments.
• Customized service process: We have established a full lifecycle service system covering "Requirements Alignment → Operating Condition Simulation → Solution Design → Sample Testing → Batch Delivery → After-Sales Follow-Up." The customization and sampling cycle can be shortened to just 3–5 working days, and our single-batch delivery capacity reaches 500,000 units per month, enabling us to swiftly respond to customers' project timeline requirements.

Jiangsu Sunzo's customized DIN6796 disc spring washers have been widely adopted across multiple core industrial sectors, effectively addressing fastening challenges in various application scenarios:

Given the prolonged exposure of construction machinery—such as excavators and loaders—to intense vibration and impact loads, Jiangsu Sunzo has custom-engineered DIN6796 gaskets made of 50CrVA material, which can withstand over 10,000 load cycles before failure. This extends their service life by 3–5 times compared to conventional spring gaskets, effectively reducing the need for downtime due to bolt loosening. In a deployment as part of an air suspension system for leading heavy-duty trucks, this solution has resulted in a 35% reduction in operational and maintenance costs.

To address thermal expansion and contraction issues in applications such as steam turbine cylinder housings and boiler components used in thermal and nuclear power plants, Jiangsu Sunzo's custom-engineered high-temperature DIN6796 gaskets maintain a stable preload even in environments exceeding 300°C, effectively preventing the degradation of bolt preload caused by thermal cycling. These gaskets have already been deployed in unit upgrade projects for numerous domestic power equipment manufacturers.

Designed to meet the high-pressure and high-corrosion resistance requirements of drilling platforms and offshore operations, the DIN6796 gasket – custom manufactured by Jiangsu Sunzo using 316L stainless steel with Dacromet surface treatment – can withstand loads up to 160 MPa and has passed a salt spray test for over 500 hours. This effectively reduces the risk of leakage and ensures the safety of oil and gas extraction operations.

Designed to meet the long-term alternating load requirements of wind turbine pitch systems and tower connection joints, the high-fatigue-life DIN6796 washers custom-made by Jiangsu Sunzo feature a dynamic cyclic service life of over 200,000 cycles, fully complying with the operational lifespan requirement of wind power equipment for more than 20 years.

For industrial enterprises, selecting customized DIN6796 disc springs tailored to specific operating conditions not only ensures safety but also represents a prudent investment for long-term cost control: firstly, it reduces the need for frequent bolt retightening operations, potentially lowering maintenance labor costs by approximately 40% in heavy machinery applications; secondly, it mitigates the risk of equipment failure or production downtime caused by bolt failure, thereby preventing losses resulting from major safety incidents; additionally, these products offer a longer service life, which reduces the frequency of spare part replacements, and their total lifecycle cost is more than 40% lower than that of using standard washers.

As an "invisible safety barrier" for industrial fastening systems, the value of the DIN6796 Belleville washer is gaining increasing recognition across various industries. Jiangsu Sunzo will continue to enhance its customized service capabilities, providing more industrial customers with more adaptable elastic component solutions, thereby supporting the security upgrade of global industrial systems.
